Local-only in your browser. Markups and calibration save per file in local storage—clear from Document (info) in the top bar.
Free· construction & design PDFs
Open construction drawings, set scale, measure, and mark up—no cost, no account.
- Set scale from a known length on the sheet, then measure lines, areas, angles, or paths.
- Markup tools use the same blue accent as in the viewer (highlights, shapes, text).
- Undo works on markups and calibration; zoom, page, and drawings are remembered per file in this browser's local storage.
- After you open a file: export PDF with markups, a PNG of the current page, or markup JSON from the top bar.

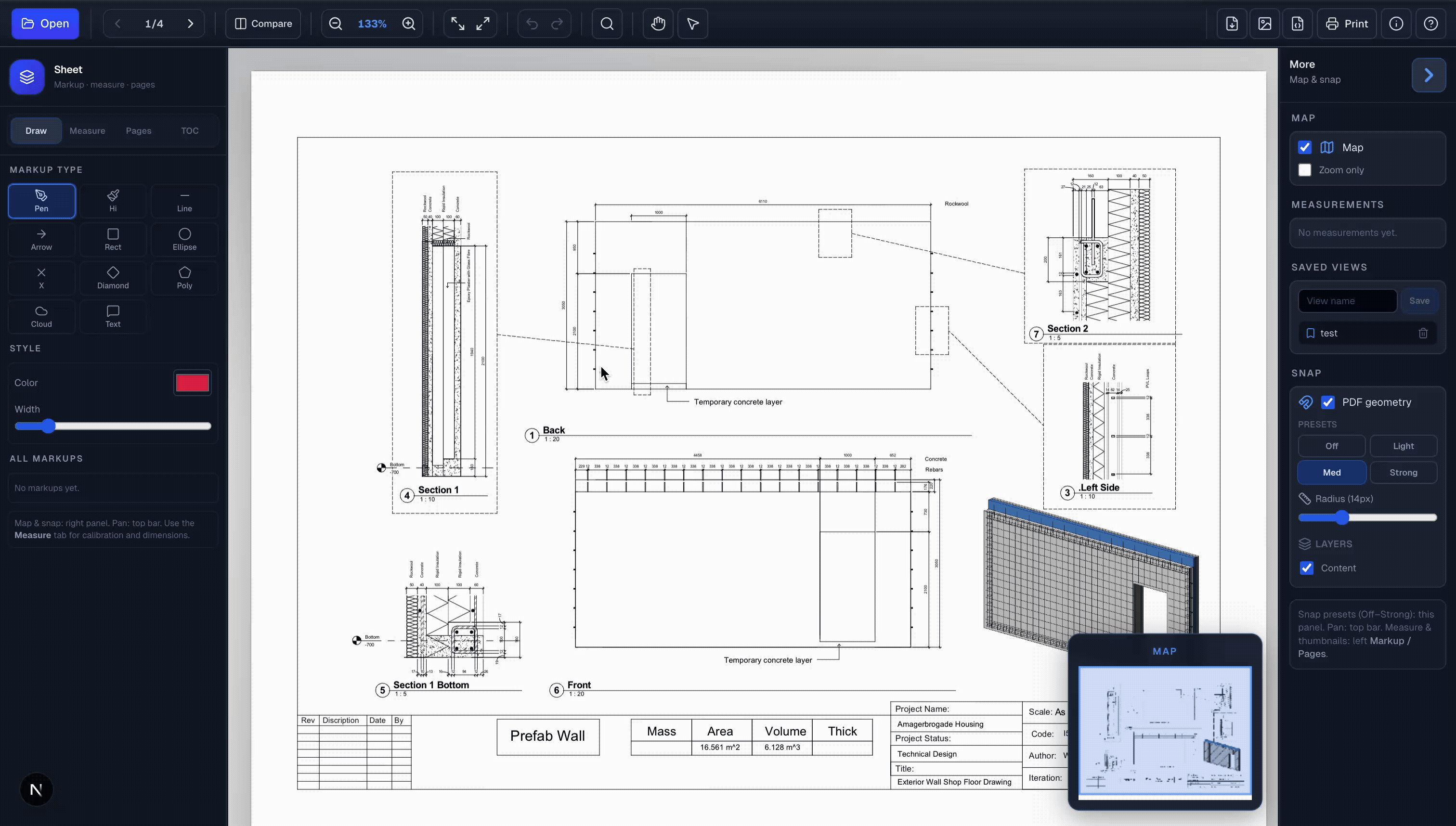

Add your image at public/images/cta/gifcta.gif

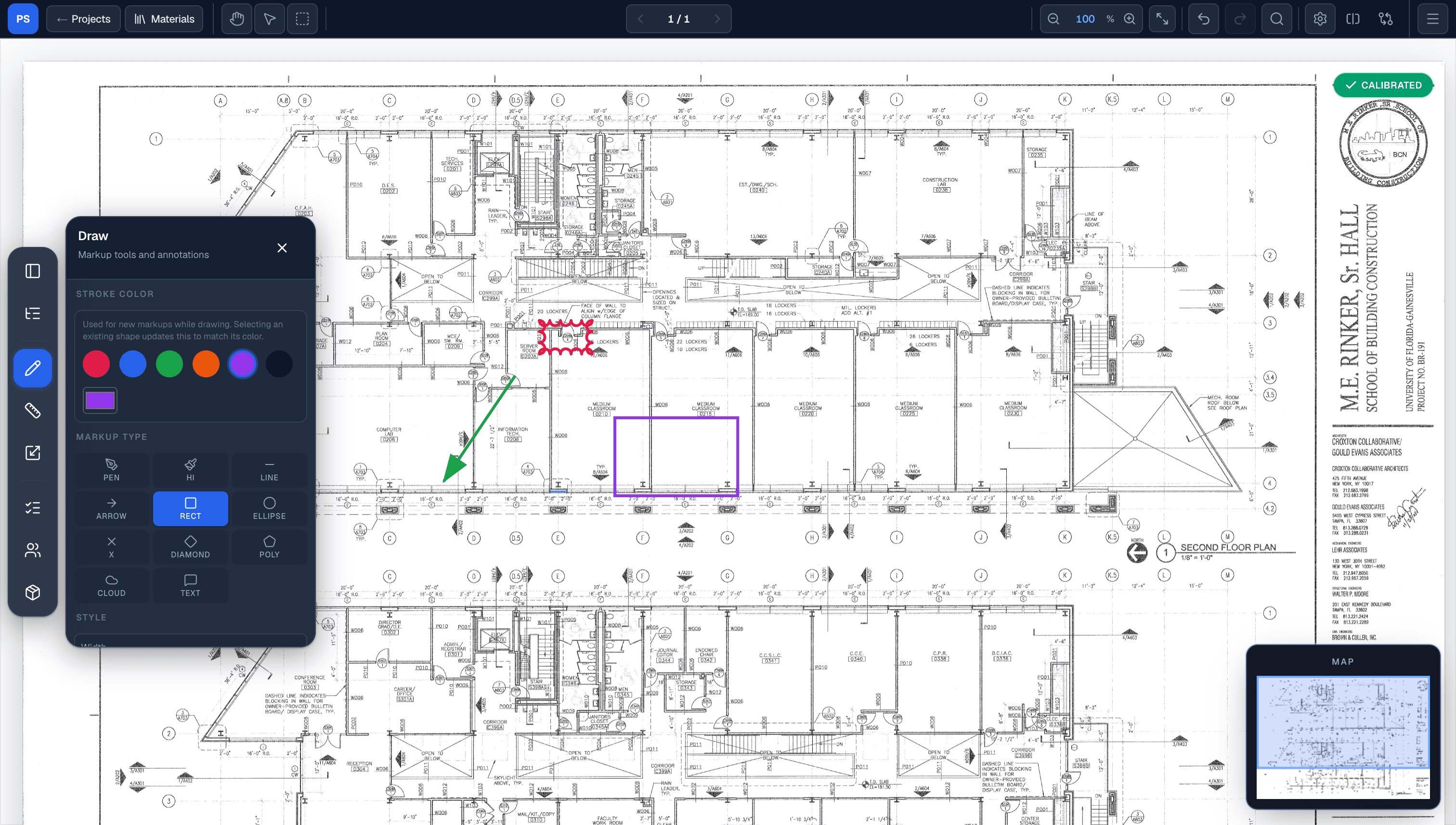

What’s in the viewer
Measure, draw, calibrate
Same tools you use on real job PDFs: measure to scale, mark up for RFIs or field notes, calibrate from a known dimension. Replace the gray boxes with your own screenshots if you want—file names are listed under the cards.
Measure
Dimensions on the sheet
After calibration, place line lengths, areas, angles, or a multi-point path. Units follow the setting in the Measure panel.
Markup
Annotations on the PDF
Pen, highlighter, lines, shapes, clouds, and short text notes. Same blue styling as the tools in the left sidebar.
Calibrate
Match the print scale
Click two points on a known distance, enter that length in millimetres, then measure against the sheet.
Who it's for
Field and office
Owner / CM
Review shop drawings and submittals as PDFs without sending files to another app.
GC & supers
Check dimensions against site conditions; mark up RFIs and punch items from the same sheet.
Detailers & engineers
Calibrate scale, measure, and export marked PDFs or PNGs for internal records.
Inspectors
Zoom, search, and annotate without installing a desktop viewer.
FAQ
Common questions
- Is my PDF uploaded to the cloud?
- No. The file stays in your browser. Nothing is sent to this app's servers for viewing or markup.
- Where are markups stored?
- In this browser's local storage, keyed to the file name and page count. You can clear them from the viewer (Document → Clear) or from Settings.
- What can I export?
- PDF with markups (rasterized), PNG of the current page, markup JSON, measurement CSV from the right panel, and a full session JSON backup from Document.
- Does it work offline?
- After the app loads, you can work without a network; the PDF is already in memory. You need a connection to load the initial app shell.
- Supported PDFs?
- Standard vector PDFs work best. Very large or heavily protected files may need to be re-saved from your CAD or PDF tool.
Open another file
Same as above—drop a PDF or use the button.
